Supermicro AS-4124GS-TNR 4U GPU Server with Dual AMD EPYC™ 7003/7002 Series Processors

Name: Supermicro AS4124GSTNR 4U GPU Server with Dual AMD EPYC 70037002 Series Processors
Brand: Supermicro
Price: 1 USD

Wholesale Supermicro AS-4124GS-TNR 4U GPU Server with Dual AMD EPYC™ 7003/7002 Series Processors from china suppliers

Brand Name : Supermicro

Model Number : AS-4124GS-TNR

Place of Origin : China

MOQ : 1/set

Payment Terms : T/T

Supply Ability : 50pcs per week

Delivery Time : 2-3 work days

Form Factor : 4U Rackmount

Processor : Dual AMD EPYC™ 7003/7002 Series Processors

GPU : 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length)

System Memory : 32 DIMM slots* Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM

Expansion Slots : 9 PCI-E 4.0 x16 (FHFL) slots or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices

Drive Bays : Up to 24x 2.5" SAS/SATA drive bays 2x 2.5" SATA supported natively* 4x 2.5" NVMe (Gen3 only) supported natively RAID controller option available for 24 HDDs

Power Supply : 2000W Redundant Power Supplies with PMBus

Dimension (W x H x L) : 73.5 x 40 x 203 mm

Contact Now

Key Applications- AI / Deep Learning
- High Performance Computing (HPC)
- Cloud Gaming
- Molecular Dynamics Simulation
Key Features
1.Supports up to 8 double-width GPUs
Direct connect for maximum performance
2.Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
3.8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
4.9 PCI-E 4.0 x16
(Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
5.Up to 24 Hot-swap 2.5" drive bays.
With included hardware:
• 2x 2.5" SATA in RAID 1 via onboard
Marvell 9230
• 4x 2.5" NVMe (Gen3 only; depends on PCI-E quantity
based on #4)
RAID controller option available for 24 HDDs
6.2 GbE LAN ports (rear)
7.8 Hot-swap 11.5K RPM cooling fans
8.2000W (2+2) Redundant Power Supplies
Titanium Level (96%+)
(full redundancy based on configuration and application load)

Form	Supermicro AS-4124GS-TNR 4U GPU Server
Processors	Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)* Socket SP3 Up to 128 Cores (64 per CPU)
GPU	Supported GPUs 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct Supports both active and passive cooled GPUs CPU-GPU Interconnect PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root GPU-GPU Interconnect NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional)
System Memory	Memory Capacity 32 DIMM slots* Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM Memory Type 3200MHz ECC DDR4 RDIMM/LRDIMM
Drive Bays Configuration	Hot-swap Up to 24x 2.5" SAS/SATA drive bays 2x 2.5" SATA supported natively* 4x 2.5" NVMe (Gen3 only) supported natively RAID controller option available for 24 HDDs
Expansion slots	9 PCI-E 4.0 x16 (FHFL) slots or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices
Power Supply	2000W Redundant Power Supplies with PMBus
Dimensions (W x H x L)	73.5 x 40 x 203 mm

Supermicro AS-4124GS-TNR 4U GPU Server with Dual AMD EPYC™ 7003/7002 Series Processors

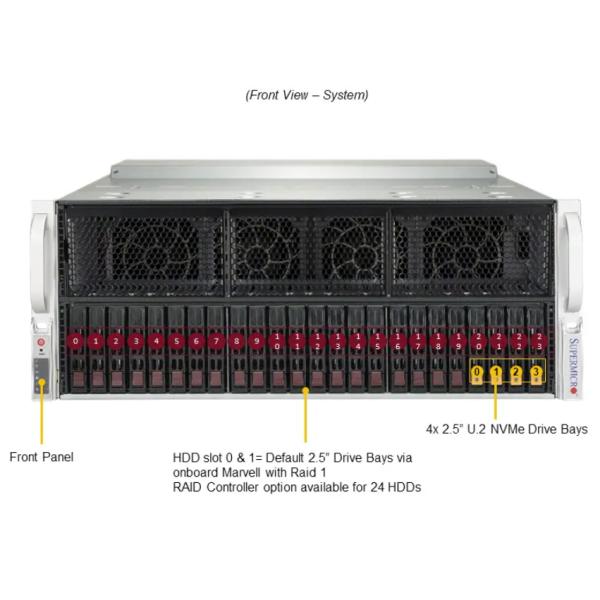

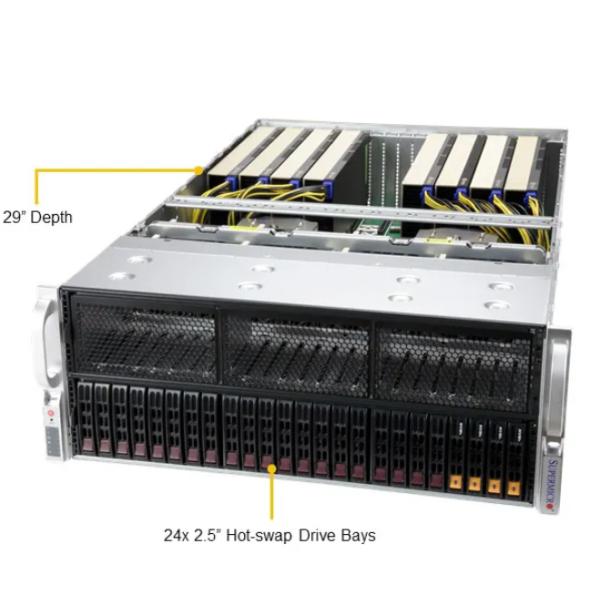

Supermicro AS-4124GS-TNR 4U GPU Server with Dual AMD EPYC™ 7003/7002 Series Processors Images
